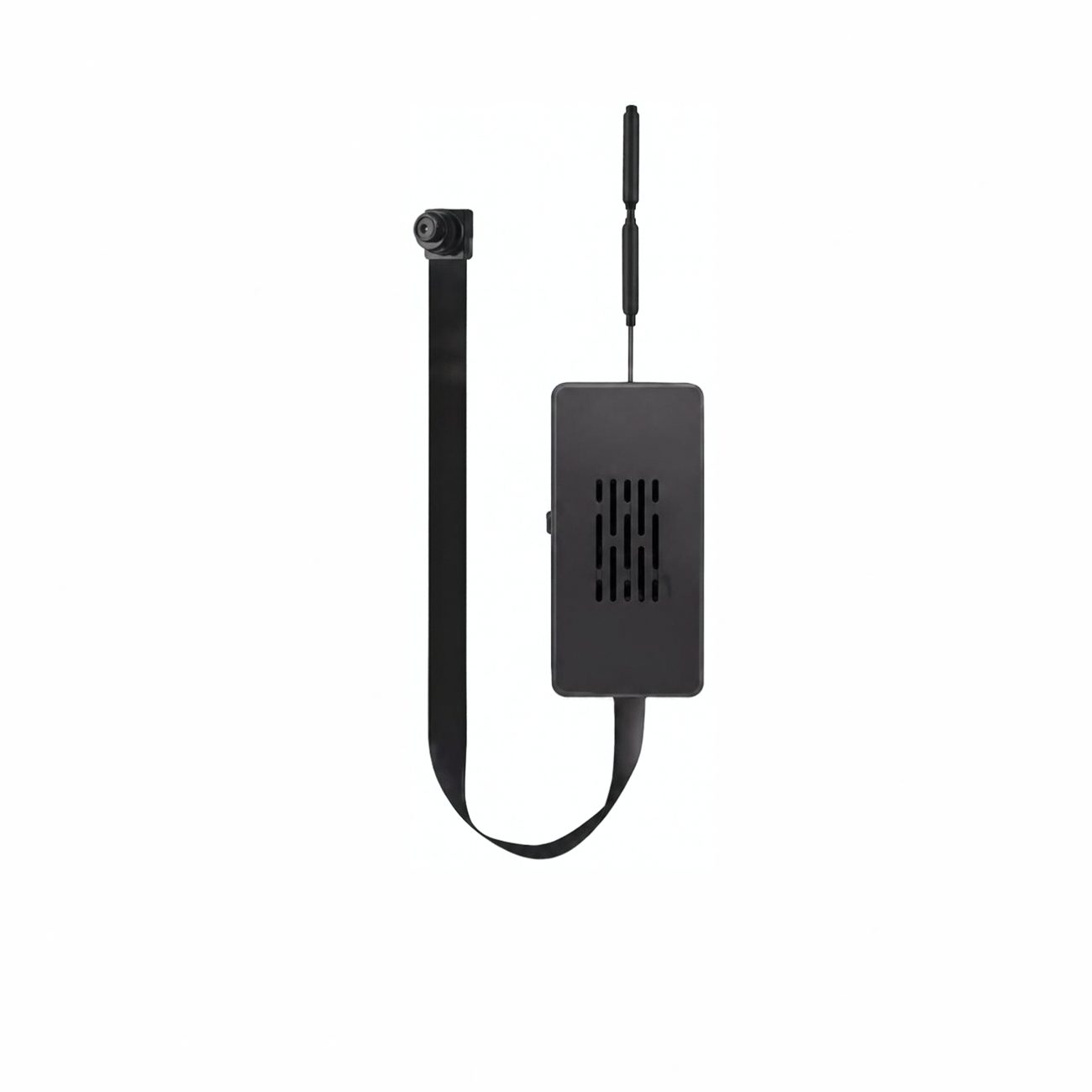

Covert DIY Camera


Use our DIY camera to Build a hidden camera with a Wi Fi DVR module. You will be able to view a live
feed on your smart phone, Android, Mac & PC and record to a memory card right on the device. This micro DVR includes everything you need to custom build your own Wi Fi hidden camera into almost anything imaginable.


  • Do-It-Yourself Hidden Camera & Wi Fi Module DVR
  • 3MP 1/3” Progressive CMOS Sensor
  • On Board DVR Saves Video to Micro SD Card
  • 1080P / 720P / WVGA Adjustable Resolution
  • P2P IP Connection – View from Anywhere
  • Vibration alert for power / record / low battery
  • Optional use with RF remote control


  1. Remote Control
  2. DVR
  3. USB Cable

Technical Specifications

  • CMOS Sensor: 1/3 Progressive
  • Sensor Resolution: 2304 X 1536
  • Sensor Sensitivity: 3.3 LUX @ F2.0
  • Focal Length: 4mm
  • Field of View: 66 degrees
  • File Formats: .MOV & .JPG
  • Video Modes: Auto/Manual/Motion Detection
  • Recording Capability: 1920X1080, 1280X720, 848×480
  • Frame Rate: Up to 30FPS
  • Wi Fi Module: 802.11b/g/n
  • Wi Fi Protocol: RTSP
  • Memory: Micro SD card up to 32Gb
  • Interface: Mini USB 2.0
  • Stamp: Time/Date
  • Power Input: 5VDC
  • Power Consumption: 450mA-500mA (with Wi-Fi off) (+60mA with Wi-Fi on)
  • Charging Time: 240 Min
  • Battery Input: 3.7V / 2200mA
  • Battery Life: Up to 240 Min (WVGA resolution Wi-Fi Off)
